총 두께: 6mm - 200mm
표준 두께: 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm
표준 크기: 1220x2440, Other size can be customized
Total Thickness: 6mm - 200mm
Standard thickness: 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm
Standard size: 1220x2440, Other size can be customized

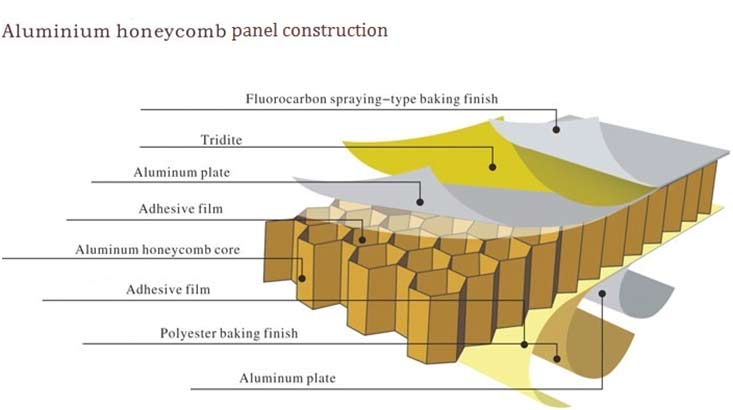

알루미늄 허니컴 패널 규격 :
1) 총 두께 : 6mm - 200mm
2) 표준 두께 : 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm
3) 표준 크기 : 1220x2440
4) 다른 크기는 주문을 받아서 만들어질수있습니다.
5) 맥스. 너비 : 2000mm
6) 맥스. 길이 : 10000mm
7) 칼라 : RAL 칼라
8) 품질 보증 : 20 년
톱 알루미늄 스킨
1) 두께 : 0.5mm - 1mm (표준)
2) 합금 : 3003, 5005, 5052
3) 고객의 요구에 따라 특수 두께제작 (1.5mm ~ 2.0mm ~ 3.0mm 등)
4) 표면 처리 : PE 코팅, PVDF 코팅
알루미늄 코어
1) 육각형 셀, 합금 시리즈 3003
요구시 : 특수 합금, 처리 및 RAL 색상 코팅
Specifications of Aluminum Honeycomb Panel:
On request: Special alloys, treatments and coating with RAL colors
2) 인치 단위 직경 : Ø1 / 4 ", Ø3 / 8", Ø1 / 2 ", Ø3 / 4"
3) 호일 두께 : 50 ~ 80 미크론
밑쪽의 알루미늄 스킨
1) 두께 : 0.5mm - 1mm (표준)
2) 합금 : 3003, 5005, 5052
3) 고객의 요구에 따라 특수 두께제작가능 (1.5mm ~ 2.0mm ~ 3.0mm 등)
4) 표면 처리 : PE 코팅, PVDF 코팅
1) Total Thickness: 6mm - 200mm
2) Standard thickness: 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm
3) Standard size: 1220x2440
4) Other size can be customized
5) Max. width: 2000mm
6) Max. length: 10000mm
7) Colors: RAL colors
8) Quality Warranty: 20 years
TOP ALUMINIUM SKINS
1) Thickness: 0.5mm - 1mm (standard)
2) Alloy: 3003, 5005, 5052
3) Special thickness according to customers’ requirements (such as 1.5mm - 2.0mm - 3.0mm)
4) Surface Treatment: PE Coated, PVDF Coated
ALUMINUM CORE
1) Hexagonal cells, Alloy series 3003
2) Diameter in inches: Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”
3) Foil thickness: from 50 to 80 microns
BOTTOM ALUMINIUM SKINS
1) Thickness: 0.5mm - 1mm (standard)
2) Alloy: 3003, 5005, 5052
3) Special thickness according to customers’ requirements (such as 1.5mm - 2.0mm - 3.0mm)
4) Surface Treatment: PE Coated, PVDF Coated

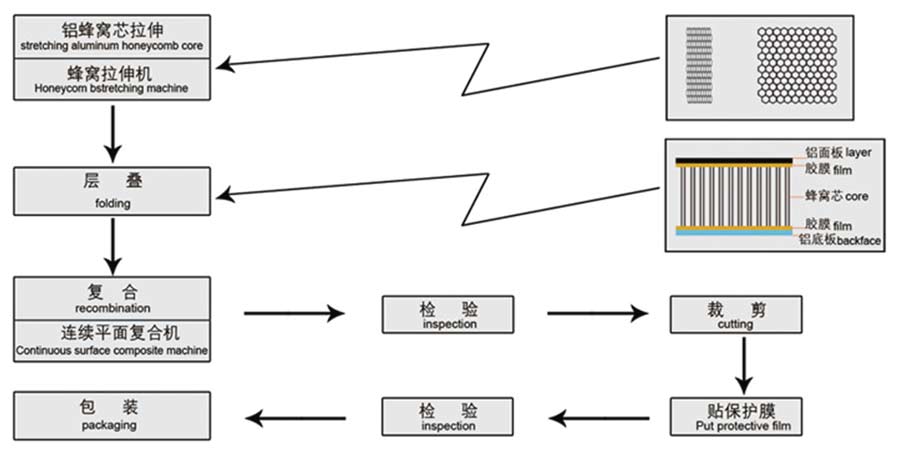

알루미늄 허니컴 패널 제조
Manufacturing of Aluminum Honeycomb Panel
알루미늄 허니컴 패널의 포장
SMC의 제품은 규정 및 고객의 요청에 따라 포장되고 라벨이 부착됩니다. 보관 또는 운송 중에 발생할 수있는 손상을 피하기 위해주의를 기울입니다. 또한 제품 ID 및 품질 정보를 쉽게 식별 할 수 있도록 패키지 외부에 명확한 레이블이 표시됩니다.
1) SMC표준
2) 맞춤 설정
Packaging of Aluminum Honeycomb Panel
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
알루미늄 허니컴 패널의 응용 분야 :
1) 커튼 월
Applications of Aluminum Honeycomb Panel:
1) Curtain Wall
2) 화장실 용 금속 칸막이
2) Metal partition for toilet
3) 실내 장식, 벽 재료, 승강기 및 엘리베이터 용 장식 재료, 가구
3) Indoor Decoration, wall material, decoration material for lift and elevator, Funiture
4) 교통 산업
4) Transportation Industry
알루미늄 허니컴 패널의 장점 :
1) 가벼운 무게, 에너지 절약, 쉽게 설치, 유지 보수 및 재활용 할 수있는 개체로드를 줄일 수 있습니다
2) 높은 강도, 좋은 강성, 쉽게 변형되지 않고 큰 베어링
3) 좋은 방음, 단열, 습기 증거, 화재 증명, 비 독성, 환경 보호
4) 높은 박리 력, 내후성, 도장 지속성, 내후성, 항 화학성 부식, 고급 외관, 내구성
알루미늄 허니컴 패널의 특징 :
1) 내화성
2) 열 및 음향 단열재
3) 녹 방지
4) 내후성
Advantages of Aluminum Honeycomb Panel:
1) Light weight, energy saving, can greatly reduce the object load, easy to install, maintain and recyclable
2) High strength, good rigidity, not easily deformed, bearing large
3) Good sound insulation, heat insulation, moisture proof, fire proof, non-toxic, environmental protection
4) High peel strength, weather resistance, paint cover lasting, anti-weathering, anti-chemical corrosion, luxurious appearance, durable
Features of Aluminum Honeycomb Panel:
1) Fireproof
2) Heat & Sound Insulation
3) Rust resistant
4) Weathering resistance
