스테인레스 스틸 시트

PVD코팅/칼라 처리한 스테인레스 스틸 시트

    두께: 0.4 - 3.0 mm


    등급: SUS304.SUS316.등



    칼라: gold,pink,red,blue,green,black,etc.





    Thickness: 0.4 - 3.0 mm


    Grade: SUS304.SUS316.etc


    Color: gold,pink,red,blue,green,black,etc.

칼라 처리된 스테인레스 스틸 시트의 규격:


1) 두께: 0.4 - 3.0 mm
2) 표준 너비:
a) 1,000mm
b) 1,219mm
c) 고객의 요구에 맞춤,1219mm이하
3) 길이 스케일:100-5000mm
4) 절단 정밀도 : 길이, 너비 ± 0.5mm
5) 케이터 - 코너 오류 : <0.5mm
6) 제품 재질 : SUS304, SUS316, SUS430, SUS439 등
7) 일반 규격 : 1000mm * 2000mm, 1219mm * 2438mm



Specifications of Colored Stainless Steel Sheet:


1) Thickness: 0.4 - 3.0 mm
2) Normal Width:
a) 1,000mm
b) 1,219mm
c) Customized, but not more than 1,219mm
3) Length scale: 100 - 5,000mm
4) Cut precision: length, width ±0.5mm
5) Cater-corner error: <0.5mm
6) Product materials: SUS304, SUS316, SUS430, SUS439, etc.
7) Common specification: 1000mm*2000mm ,1219mm*2438mm





PVD 코팅 스테인레스 스틸:


1. PVD 코팅이란 무엇입니까?

PVD 코팅은 티타늄 또는 지르코늄의 물리적 증기 증착을 의미하며 티타늄 / 지르코늄 도금이라고도합니다.

PVD코팅은 진공 챔버에서 스테인레스 스틸 기판위에 컬러 필름을 제공하며 색깔이 잇는 필름은 정상적인 내부 또는 외부 환경하에서 퇴색없이 오래 지속될수 있습니다.


2. 작동 원리

금속또는 합금은 전기아크에 의해 고체로부터 기화되어 플라즈마증기를 형성하고,플라즈마로부터 생성된 고도로 대전된 금속 이온은 아르곤가스와 같은 불활성가스와 혼합된다.양으로 대전된 플라즈마는 음으로 하전된 스테인레스 스틸 시트에 끌려 시트상에 염색된 금속 필름을 생성한다.



구리,황동과같은 적색 금속처럼 색이 산화되거나 변색됩니다.플라즈마를 형성하는 온도와 혼합가스 및 요소를 변경하므로써,Top  Honest는 다양한 코팅색상을 개발했습니다.


3. 수명 완료 --- PVD 코팅

기존의 전기 도금 및 기타 기존 코팅과 달리 PVD 코팅의 여러 특성으로 인해 높은 경도와 내마모성, 변색이나 변색이 발생하지 않으며 높은 내식성과 자외선에 의한 공격을받지 않습니다. Top Honest PVD 코팅 스테인리스 스틸은 장식 용도로 사용되는 독특한 소재입니다



(A). 혹독한 햇빛,염분,습기 및 도시 환경에서 변색,산화 또는 변색하지않음

(B). 긴시간동안 자외선밑에 노출되여서는 안되며,벗겨지지않고 흔적이 남으며 변색됩니다.

(C). 각종 색갈을 코팅할수있으며 표면패턴 및 마감처리가 가능합니다.

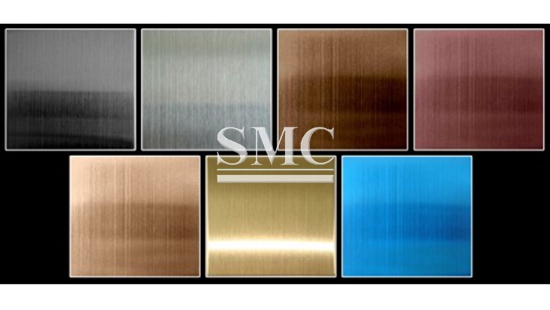

4. PVD 코팅 색상

골드,황동,로즈골드, 실버,스모크 그레이,블랙,구리,브론즈,불루,퍼플,브라운,레드와인 등.



생산 공정

냉간 압연





PVD Coating Stainless Steel:


1. What’s PVD coating

PVD coating means Physical Vapor Deposition of Titanium or Zirconium, can also be called Titanium/Zirconium-plating.

It provides a colored film over the stainless steel substrate in a vacuum chamber. The colored film could last long time without fading under normal interior or exterior environment.



2. How it works

Metal or alloy is vaporized from a solid(Cathode)by means of electric arc to form a plasma vapor, the resulting highly charged metal lons from the plasma are then mixed with inerted gas such as argon gas. The positively charged plasma is attracted to the negatively charged stainless steel sheets, producing a colored metallic film on the sheets.



Color does net fade or oxidize as do the red metals such as copper and brass. By altering the temperature, mix of gasses and elements that form the plasma, Top Honest has developed a broad range of coatings colors.



3. Life Time Finish---PVD Coating

Unlike traditional electroplating and other existing coatings, due to several characteristics of PVD coating: high hardness and wear resistance, no discoloration or tarnishing, high corrosion resistance and no attack by UV radiation, Top Honest PVD coating stainless steel is a unique material for decorating application:



(A). Will not tarnish, oxidize, or discolor in harsh sun, salt, humidity and city environments.

(B). Impervious to extended exposure to UV light with no flaking, cracking or discoloration.

(C). Available in a wide range of colors, surface patterns and finishes.



4. PVD coating colors

Gold, Brass, Rose Gold, Silver, Smoke grey, Black, Copper, Bronze, Blue, Purple, Brown, Wine Red, etc.



Producing process



Cold rolled

Hot rolled

응용

다양한 종류의 스테인레스 스틸은 수천가지 용도에 사영되며 다음은 전체 범위의 제공됩니다.

1.국내

– 수저,싱크대,냄비,세탁기 드럼,전자 렌지 라이너, 면도

2.교통

– 배기 시스템,자동차 트림/그릴,도로 유조선,선박 컨테이너,케미칼 탱거 배송,쓰레기 차량

3.오일 및 가스

– 플랫폼 숙박 시설,케이블 트레이,해저 파이프라인,

4.의료

– 외과 용 기기,외과 용 임플란트,MRI스캐너

5.음식과 음료

– 케이터링 장비,양조,증류,식품 가공

6.물

– 하수도 처리,급수관,온수 탱크.

7.일반

– 스프링,패스너(볼트,너트)와이어.

8.화학/제약

– 압력 용기,공정배관

9.건축/토목 공학

– 클래딩, 핸드레일, 문 및 창문 피팅, 거리 가구, 구조용,보강 용 막대, 조명 기둥, 상인방, 벽돌 지지대





APPLICATION

Stainless steels of various kinds are used in thousands of applications. The following gives a flavour of the full range:

1.Domestic

– cutlery, sinks, saucepans, washing machine drums, microwave oven liners, razor blades

2.Transport

– exhaust systems, car trim/grilles, road tankers, ship containers, ships chemical tankers, refuse vehicles

3.Oil and Gas

– platform accommodation, cable trays, subsea pipelines.

4.Medical

– Surgical instruments, surgical implants, MRI scanners.

5.Food and Drink

– Catering equipment, brewing, distilling, food processing.

6.Water

– Water and sewage treatment, water tubing, hot water tanks.

7.General

– springs, fasteners (bolts, nuts and washers), wire.

8.Chemical/Pharmaceutical

– pressure vessels, process piping.

9.Architectural/Civil Engineering



– cladding, handrails, door and window fittings, street furniture, structural sections,reinforcement bar, lighting columns, lintels, masonry supports

스테인레스 스틸 시트/플레이트의 포장 정보:


상하이 금속 제품은 규정 및 고객의 요청에 따라 포장되고 라벨이 부착됩니다. 보관 또는 운송 중에 발생할 수있는 손상을 피하기 위해주의를 기울입니다.



Packing Information of Stainless Steel Sheet/Plate:




Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.



칼라 처리된 스테인레스 스틸 시트의 응용분야:


1. 응용 프로그램 만들기

a) 기둥 커버

b) 엘레베이터 문

c) 에스컬레이터 및 무빙워크 클래딩

d) 장식용 및 장식용 클래딩

e) 호텔 입구

f) 건축상의 손질과 악센트

g) 전화 부스

h) 기타

2. 가정용 고정장치 응용 프로그램

a) 주방 용품

b) 개비넷

c) 문

d) 우편함

e) 기타

3. 산업 설비 응용:

a) 의료 기기

b) 전기 제품

c) 냉장고

d) 하드 웨어

e) 기타



컬러 스테인레스 스틸 시트의 특징:


칼라 처리된 스테인레스 스틸은 무독성,내부식성,내마모성 등이 우수합니다.부동한 조명각도에 따라서 색상과 광택이 변하느는 효과를 낼수있습니다. 채색 코팅은 영하 200섭시도에서 원래의 특성을 유지할수 있으며 소금 스프레이 내식성은 일반적인 스테인레스 스틸 보다 좋습니다.



스테인레스 스틸 시트는 주로 고대 건축장식의 내 외장 벽 패널,천장,문,창문,기둥,계단,난간,엘리베이터,및 고대 건축물의 지붕 타일에 사용됩니다.또한,그것은 부식방지 장비,판넬,광고 벽,보드,장식용 패턴,계기 패널 및 모든 종류의 차량 장식 보드를 제조하는데 사용될수있습니다.



FAQ

Q1:얼마나 많은 국가에 수출했습니까?

A1:캐나다,미국,쿠웨이트,이집트,이란,터키,요르단,싱가포르 등 50개국이 넘는 나라에 수출했습니다.


Q2:샘플은 얻으려면 어떻게 해야합니까?

A2:작은 샘플은 잔고가 있다면 면비 제공이 가능하며 카탈로그를 사용할수있으며 맟춤형 샘플은 3-5일간의 시간이 필요합니다.


Q3:최소 주문량은 얼마입니까?

A3:스테인레스 스틸 시트의 재질은 일톤 이상부터입니다.


Q4:물건 배송날짜는 어느때 입니까?

A4:샘플은 3-5일 이라는 시간이 걸리며 정규주문은 약 15-20일 걸립니다.


Q5:귀사는 어떻게 제품의 질량을 컨트롤 합니까?

A5:BV 및 SGS 보고서와 같은 제 3 자 검사. 생산 프로세스는 ISO 9001 시스템을 따랐습니다.





Applications of Colored Stainless Sheet:


1. Building applications

a) Column covers

b) Elevator doors

c) Escalators and moving walk cladding

d) Ornamental and decorative cladding

e) Hotel entrances

f) Architectural trims and accents

g) Telephone booth

h) More

2. Home fixture applications:

a) Kitchen appliances

b) Cabinets

c) Doors

d) Mail boxes

e) More

3. Industrial fixtures applications:

a) Medical instruments

b) Electrical products

c) Refrigerator

d) Hardware

e) More



Feature of Coloured Stainless Steel Sheet:


Coloured stainless steel is of non-toxic, good corrosion resistance, good abrasion resistance, etc. With different illumination angle, color and luster can produce changeable color effect. Coloured coating can maintain its original property at minus 200 degrees centigrade. Meanwhile, its salt spray corrosion resistance is better than normal stainless steel.



Stainless steel sheets are mainly used for decorative interior and exterior wall panels, ceilings, doors, windows, columns, staircase handrails, elevator and roof tiles of ancient architecture. Additionally, it also can be used to manufacture anti-corrosion equipment, plaques, advertising wall, boards, decorative patterns, instrument panels and all types of vehicles decorated boards.



FAQ

Q1:How many countries you already exported?

A1:Exported to more than 50 countries like Canada, United States, Kuwait, Egypt, Turkey, Jordan, Singapore etc.


Q2:How can I get some samples?

A2:Small samples in store and can provide the samples for free. Catalogue is available. Customized samples will take about 3-5days.


Q3:What is the MOQ?

A3:Stainless steel sheets 1 tons for stock material.


Q4:What is the delivery ?

A4:Sample order’s delivery time is 3- 5days. Regular orders are about 15-20 days.


Q5:How does your company do regarding quality control?



A5:Third party inspection like BV and SGS reports, production process followed the ISO 9001 system.
