등급: C1100/CW004A/Cu-ETP/T2/E-Cu58
두께: 12µm-105µm
너비: max.1290mm
성질: Soft Annealed
Grade: C1100/CW004A/Cu-ETP/T2/E-Cu58
Thickness: 12µm-105µm
Width: max.1290mm
Temper: Soft Annealed
CCL/PCB 전해 동박은 다음으로 분류된다: 표준 전해 동(STD), 동박의 고온 신장율(HTE), 초저 윤곽 동박 (VLP), 연성 동박 (FCF), 동호일 반전 (RTF). ED 동호일의 일반 두께가 6 미크론 및 8 미크론, 12 미크론, 18 미크론, 35 미크론, 105 미크론, 400 미크론 등이다. ED 동호일의 최대 너비가 1370mm (53.93inch)이다. 고객님의 요구에 따라 개성적인 가공도 가능하다.
CCL/PCB electrolytic copper foil are classified as: Standard electrolytic copper foil (STD), High-temperature elongation of the copper foil (HTE), ultra-low contour copper foil (VLP), flexible copper foil (FCF), inversion of copper foil (RTF). Ordinary thickness of the ED copper foils are 6 microns and 8 microns,12 microns, 18 microns, 35microns ,105 microns, 400 microns, etc. The maximum width of the ED copper foil is 1370mm (53.93inch). Also we can do special process according to customer requirements.
전해 동박의 외관:
1) 동호일의 표면은 부끄럽고 평평함.
2) 붐명한 오목 및 볼록 점, 주름, 들여 쓰기, 손상 없음
3) 색상과 광택이 균일하며 산화, 부식 및 오일이 없음
4) 플러시 트리밍, 레이스와 동 가루가 없음
Appearance of Electrolytic Copper Foil:
1) The copper foil surface is smooth and level off
2) No obvious concave and convex point, crease, indentation, damage
3) The color and luster is uniform, no oxidation, corrosion and oil
4) Trimming flush, no lace and copper powder
전형적인 기계적 성질 :

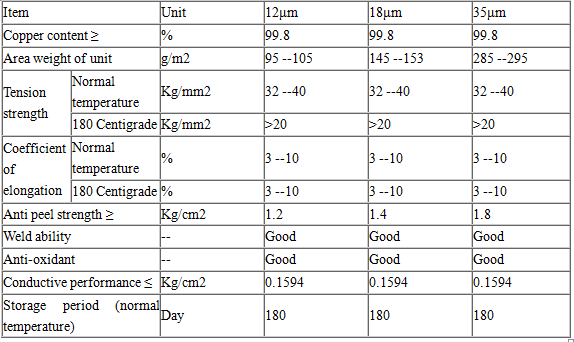

Typical Mechanical Properties:
1)SMC표준
2)고객맞춤설정
포장:
항목 이름, 사양, 배치 번호, 순중량, 총중량, RoHS 및 제조업체가있는 패키지에 표시된다.
Packaging of Electrolytic Copper Foil for CCL and PCB
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
Packing:
Indicated on the package with item name, specification, batch number, net weight, gross weight, RoHS and manufacturers.
저장 조건:
1)창고는 깨끗하고 건조하며 습도가 60 % 이하이고 온도가 25oC 이하
2) 창고에는 부식성 가스, 화학 물질 및 젖은 제품이 들어 있지 않음.
Storage Condition:
1) The warehouse is kept clean, dry, and humidity is under 60% as well as The temperature under 25oC.
2) The warehouse does not contain corrosive gas, chemicals and wet goods.
